Continuous inflatable arch
Stand Out at Every Even
An inflatable arch is a lightweight, eye-catching structure commonly used for outdoor events, races, brand promotions, and grand openings. Made from durable fabric and kept upright by a continuous air blower, it can be fully customized with logos, graphics, and lighting. The inflatable arch serves as both a decorative element and a functional entry or starting point for events.
Product Parameters
| Specification | Angled Inflatable Arch-6m | Angled Inflatable Arch-7.9m | Angled Inflatable Arch-10m | Angled Inflatable Arch-12m |
|---|---|---|---|---|
| L (m) | 6 | 7.9 | 10 | 12 |
| H (m) | 4 | 4.7 | 5 | 6 |
| D (m) | 1 | 1.2 | 1.3 | 1.3 |
| Arch With Blower Weight (kg) | 12 | 16 | 24 | 25 |
| App. Packing (cm) | 45×39×20 | 51×25×37 | 55×47×61 | 55×47×61 |
| App. Time (m) | 3 | 5 | 7 | 10 |
| Setup Person | 1 | 2 | 2 | 2 |

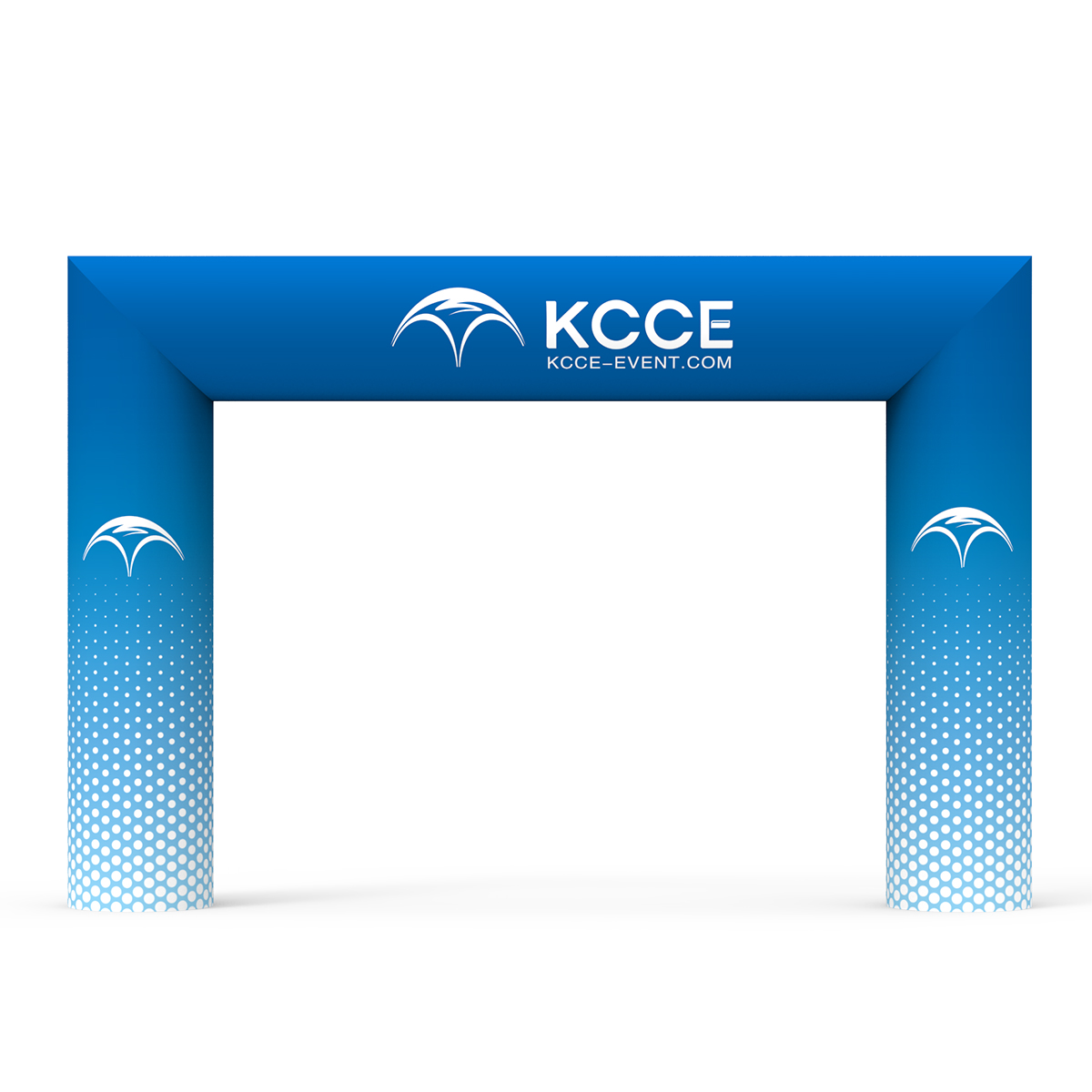

| Specification | Round Inflatable Arch -6m | Round Inflatable Arch -10m |
|---|---|---|
| W (m) | 6 | 10 |
| H (m) | 3 | 5 |
| D (m) | 0.6 | 1 |
| Arch Weight (kg) | 12 | 17 |
| App. Packing (cm) | 45×39×20 | 51×43×39 |
| App. Time (m) | 8 | 10 |
| Setup Person | 2 | 2 |

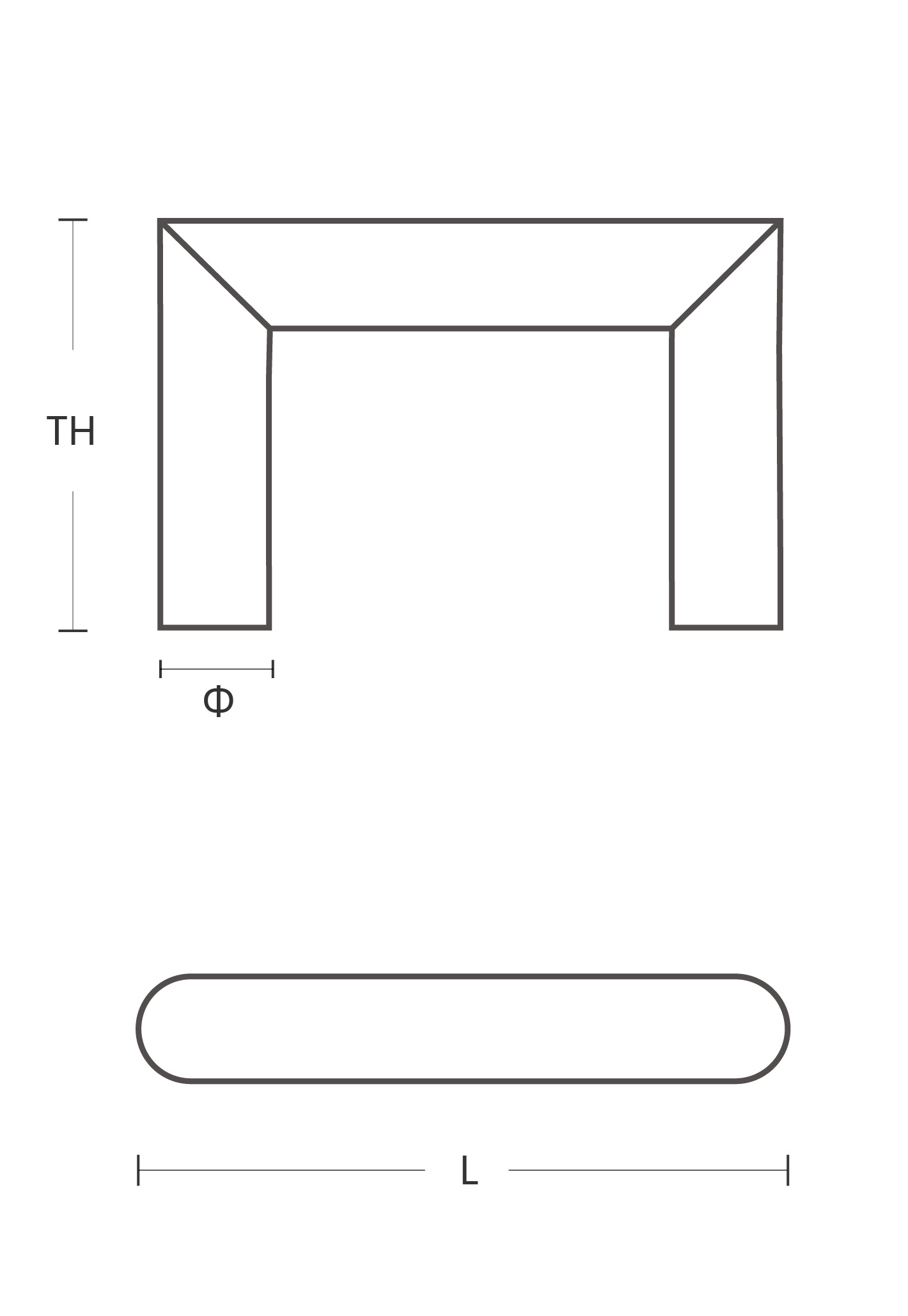

| Specification | Right Angled Inflatable Arch -6m | Right Angled Inflatable Arch-8m |
|---|---|---|
| W (m) | 6 | 8 |
| H (m) | 3.25 | 4.25 |
| D (m) | 0.6 | 0.8 |
| Arch Weight (kg) | 10 | 15 |
| App.Packing(cm) | 45X39X20 | 45X39X20 |
| App. Time(m) | 8 | 10 |
| Setup Person | 2 | 3 |
| Specification | Double Angled Inflatable Arch -6m | Double Angled Inflatable Arch-8m | Double Angled Inflatable Arch-10m |
|---|---|---|---|
| L (m) | 6 | 8 | 10 |
| W (m) | 4.3 | 5 | 5.6 |
| H (m) | 4 | 4.2 | 5 |
| D (m) | 1 | 1.2 | 1.3 |
| Arch with 2 Blowers Weight (kg) | 35 | 42 | 50 |
| App.Packing(cm) | 76X65X40 | 76X65X40 | 76X65X40 |
| App. Time(m) | 12 | 15 | 18 |
| Setup Person | 3 | 3 | 3 |
KCCE® Event Tents are modular and extendable
Product Case
Free 2D Template or 3D Rendering !
Get our catalog
Download our catalog and learn more about KCCE products in detail!
| Feature | Continuously Inflated Arch | Airtight (Sealed Air) Inflatable Arch |
|---|---|---|
| Inflation Method | Requires continuous airflow from a blower | Inflated once and sealed—no blower needed during use |
| Power Requirement | Must be plugged in during the entire event | No power needed after initial inflation |
| Blower Type | Internal or external blowers available | No blower needed during use; optional external blower for inflation |
| Weight | Lightweight, easy to carry | Heavier due to TPU liner and sealed structure |
| Noise Level | Produces noise due to running blower | Completely silent |
| Portability | Very easy to transport and set up | Slightly harder to move due to added weight |
| Use Scenario | Ideal for short-term events with power supply (e.g. races, promotions) | Best for quiet environments or locations with no electricity |
| Durability | Durable for regular event use | More robust, especially for premium or high-end event setups |
| Customization Options | Fully customizable (size, shape, color, banner, D-rings, logo printing) | Fully customizable with interchangeable outer shells and inner bladders |
| Size Limitation | Suitable for all sizes, including large diameters (e.g. 1.5m+) | Recommended diameter ≤ 90cm for best handling and durability |
| Storage & Setup | Easy to roll and pack; no trolley bag required | Comes with zipper and handles; trolley bag optional |
| Typical Buyers | Budget-conscious clients, sports organizers, promotional agencies | Event planners needing silent setups or with limited power access |
| Price | More affordable | Higher price due to materials and inner bladder |
